Operation manual

RGB Smart Bulb

VDS L9WA60BW

Este manual está em Inglês. Se você está procurando pela versão em Português, clique aqui.

1. General information

Package contents:

• RGB Smart Bulb VDS L9WA60BW

• Quick Guide

Technical specifications:

• Product model: VDS L9WA60BW

• Power input: 100-240 volts (V)

• Total consumption: 9 watts (W)

• Lumens: 800

• Bulb type:

  • A60 bulb

  • E26+E27 connector

• Light: RGB

• Illumination angle: 220°

• Dimensions: 60 x 112 mm

• Wireless connection: Wi-Fi 2.4GHz 802.11 b/g/n + Bluetooth Low Energy

• Supported platforms: Android/iOS

Reset:

• Turn the light bulb on and off five times (wait one second between each switch toggle). When turning it on for the fifth time, the bulb will light up with a default color (yellowish) and will start blinking (pairing mode) after a few seconds.

2. FCC Caution

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference; and

2. This device must accept any interference received, including interference that may cause undesired operation.

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna;

• Increase the separation between the equipment and receiver;

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected;

• Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

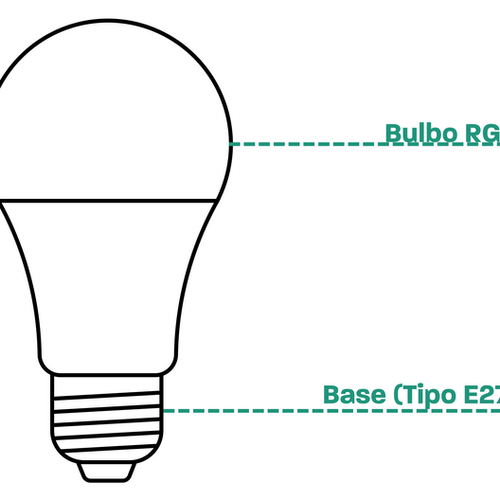

3. The product

4. Warnings before installing

1. Turn off the circuit breaker and make sure that there's no electrical energy where the product will be installed before attempting installation.

2. This product is compatible with the E27 standard.

3. Keep the product far from metallic surfaces, microwaves and other furniture.

4. Keep the device close to a Wi-Fi access point.

5. Use the product's reset function in order to change the Wi-Fi connection being used by the product.

5. Installing the product

1. Make sure that there's no electrical energy where the product will be installed (check warnings);

2. Remove the old bulb (if necessary);

3. Insert the VDS L9WA60BW into the E27 connector and screw the product clockwise;

4. Guarantee that the device was correctly inserted in the connector;

5. Turn the circuit breaker on (if necessary);

6. Turn on the light switch of the lamp to test it.

6. Installing the Velds app

Download the app:

Register and log in: open the app and register an account, or use an existing account.

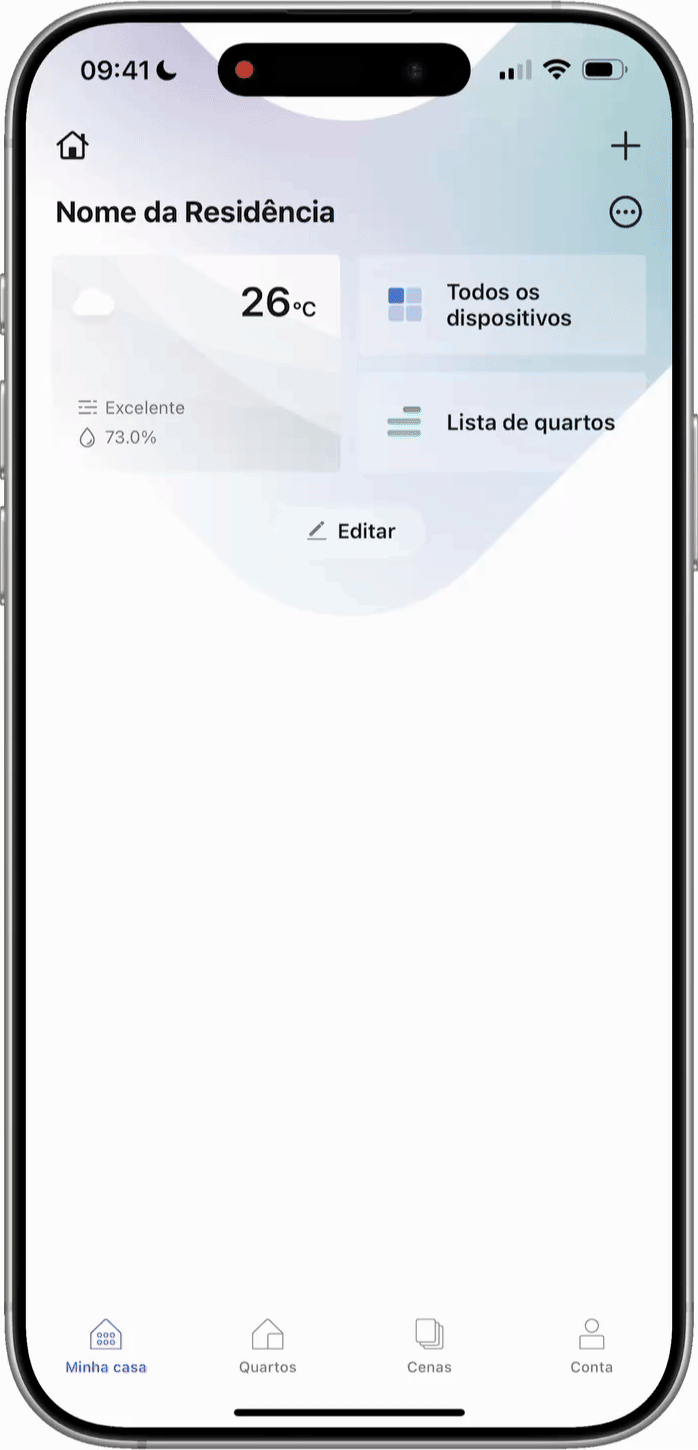

7. Pairing to the Velds app

1. Make sure your Wi-Fi router has the 2.4GHz band enabled and is connected to the internet

2. Turn the product on and wait for it to start blinking (if it doesn't, follow the reset steps in the first section)

3. Open the Velds app

4. Tap the “+” and select “Add a Device”

5. Once your product appears at the top of the list, tap it and skip to step 7

6. If your product doesn't automatically appear, select the “Illumination” category and select “Smart Bulb (VDS L9WA60BW)”

7. Input the 2.4GHz Wi-Fi password and click “Next”

8. If prompted, follow the on-screen instructions and click “Next”

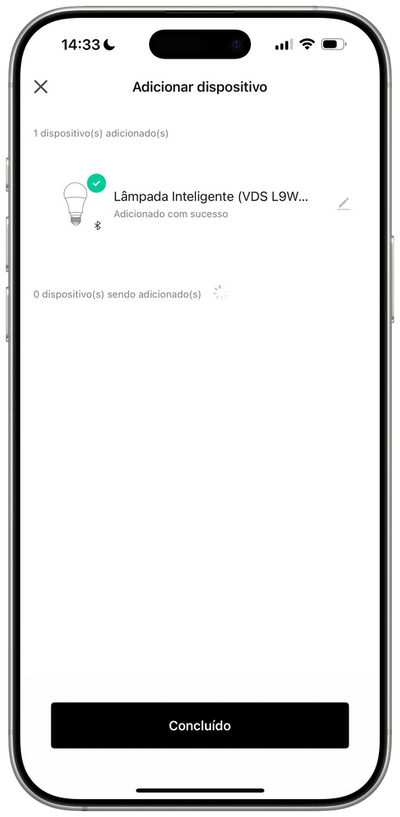

9. Wait for the device to connect to the internet and be added to your virtual home

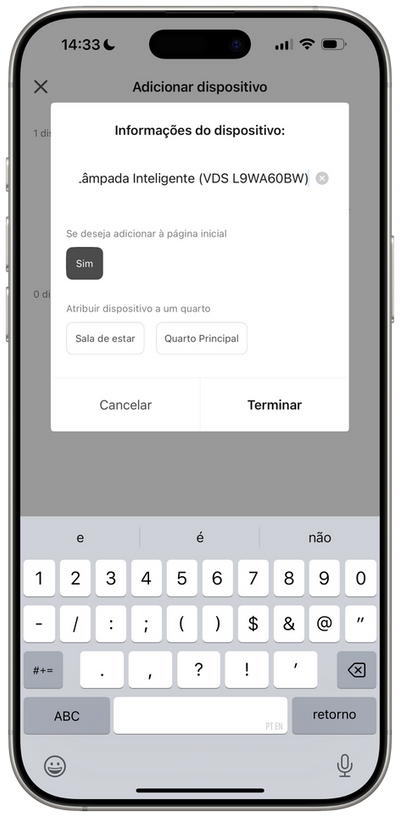

10. Tap the pencil icon to edit the product's name, add it to a room (if you've created them), and chose whether to add it to the main page, and then tap “Finish”

8. UI elements

The interface to control the product features the following items:

	Tap this icon to leave the product's control page, and return to the main app
	Tap this icon to access more configuration options and product information
	Tap this icon to turn the smart bulb on or off
	Slide or tap the bar to set the color of the smart bulb
	Slide the brightness bar to change how bright the smart bulb is (in Color mode, there is a Saturation bar as well)

9. FAQ

10. Terms and Policies

VELDS

Imported and distributed in the United States by:

VELDS CAPITAL GROUP LLC

Product composition: plastic, metal and electronic components

Validity: Indeterminate

Designed in Florida

Made in China
